An encounter between Fine Watchmaking and fluid mechanics.

An encounter between Fine Watchmaking and fluid mechanics. One might say a utopia. Shattering all certainties, steamrollering conformity, the idea that led to the H1 was simple and consisted of two flexible reservoirs fixed to each end of a capillary. In one was an aqueous liquid filled with fluorescein, and in the other, a transparent viscous liquid. To keep them separate : the repulsive force of the molecules in each liquid, with a meniscus to mark the boundary between the two.

As the hours go by, the fluorescent liquid advances. The meniscus, in the shape of a half moon, marks the breaking point with the other fluid in the tube, indicating the time. At 18:00, the fluorescent liquid comes back to its original position, going backwards. The secret that gets the reservoirs going ? Two bellows made of a highly resistant, flexible
electro-deposited alloy, each driven by a piston. And this is where watchmaking comes in to activate the system.

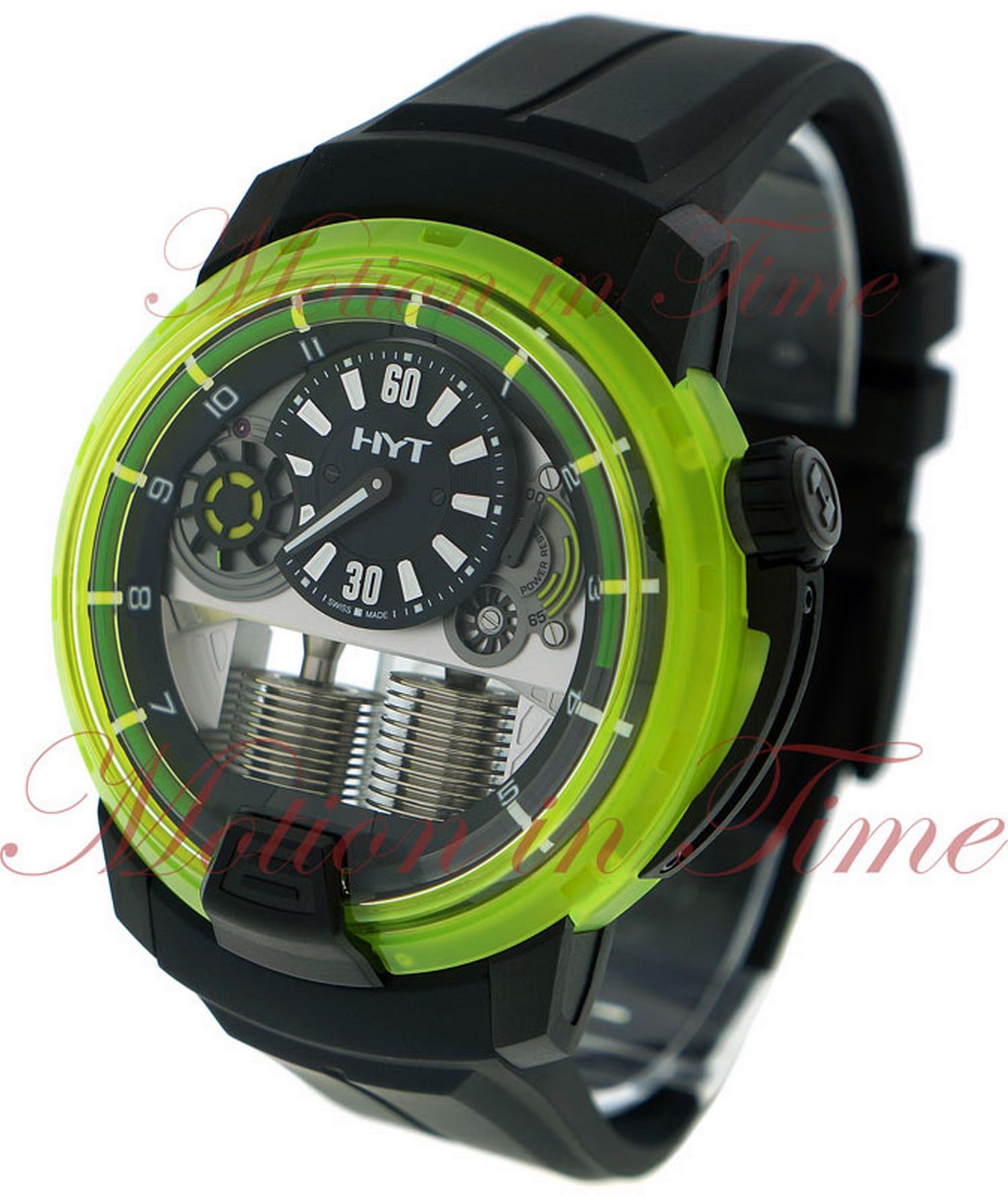

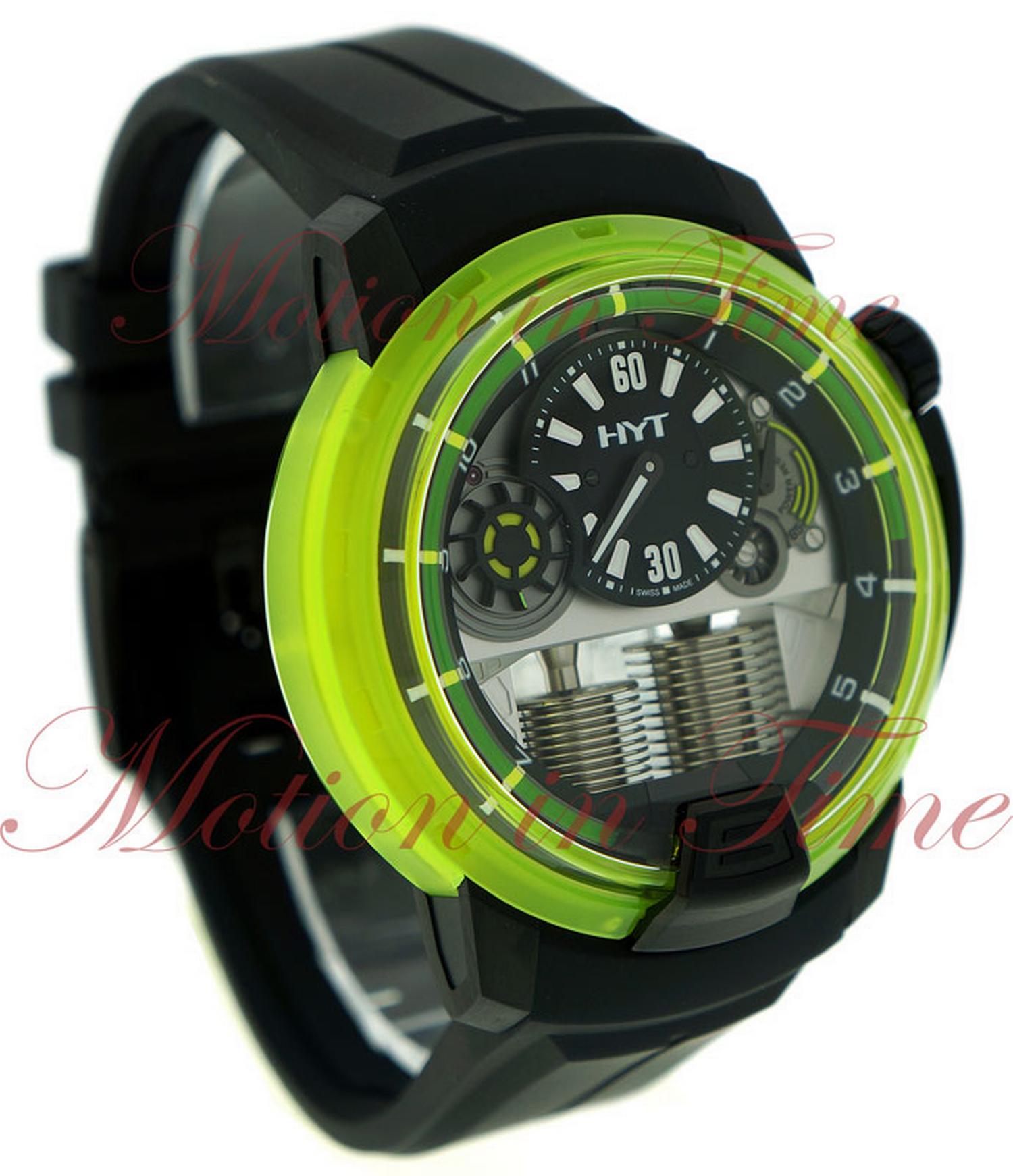

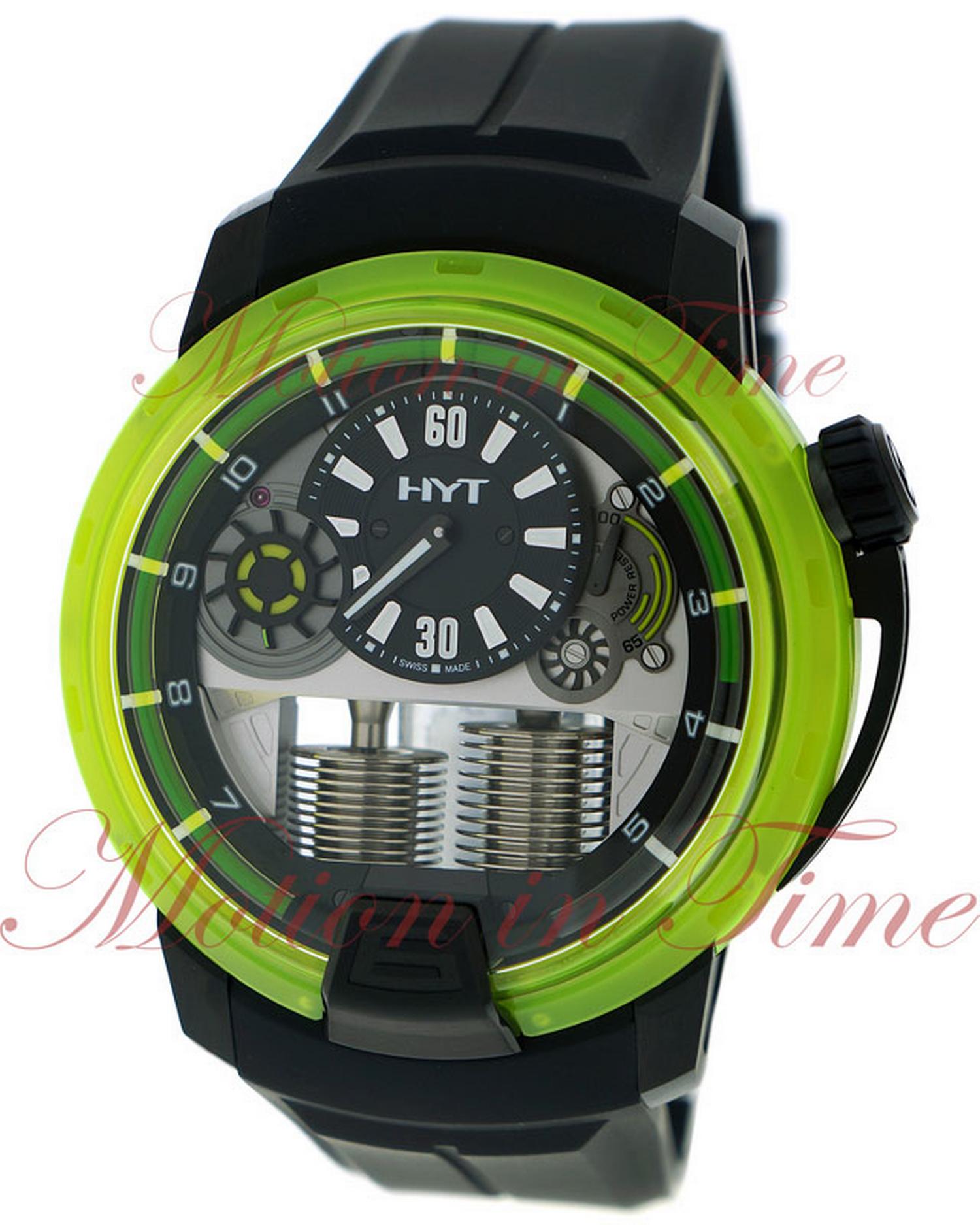

The two reservoirs at 06:00. While the first compresses, the second expands, and the other way round, resulting in the movement of  the liquid in the capillary.

A MECHANICAL MOVEMENTTO ACTIVATE THE HYDRO SYSTEM

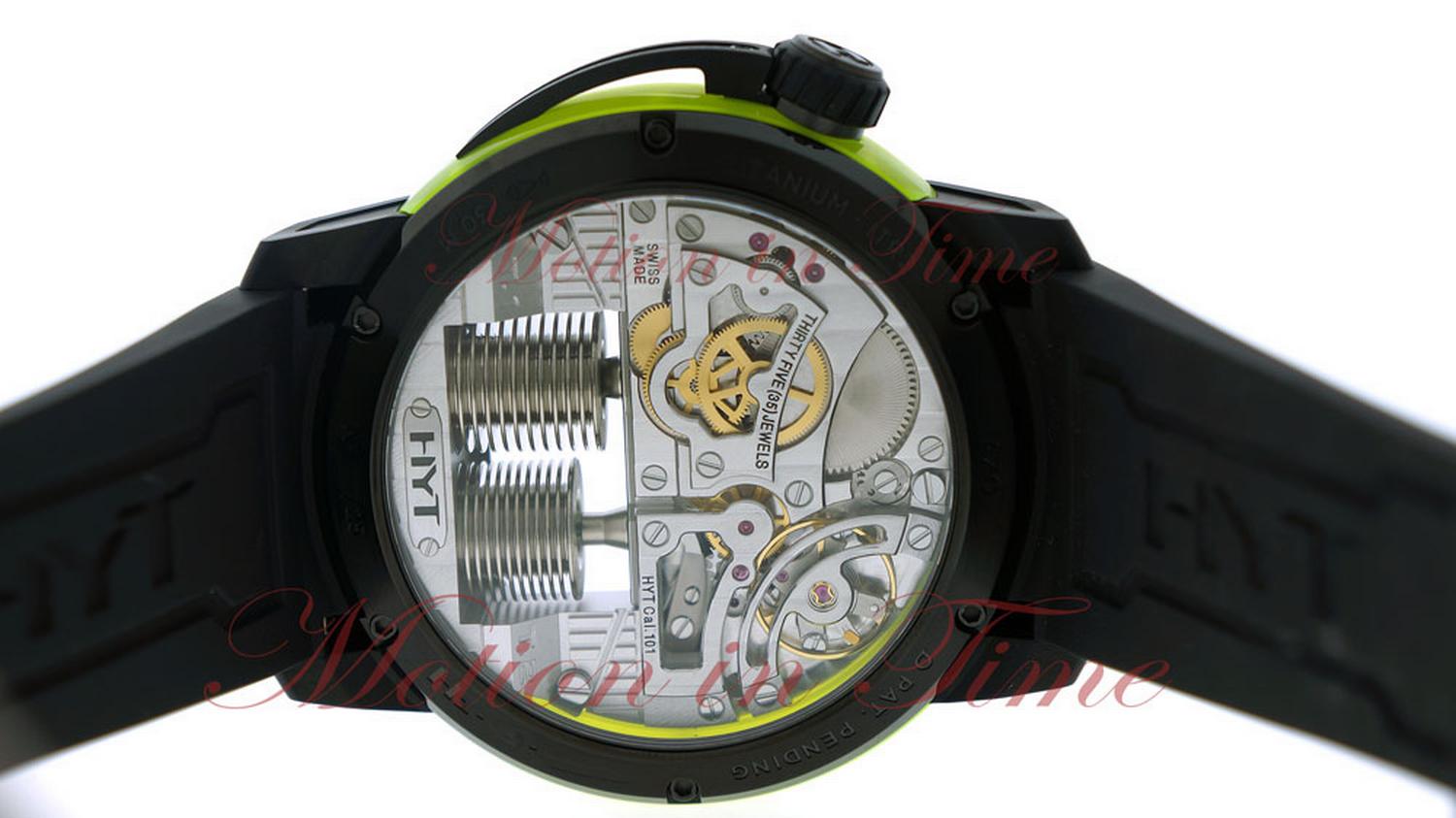

Orchestrated by Brino Moutarlier, alongside Jean-François Mojon and his Chronode SA team, a mechanical movement is situated in the upper part of the watch, and propels a cam, which pushes the piston and activates the bellows.

The main challenge lay in finding an interface between the mechanical movement and the hydro system in a closed, waterproof circuit – a task further complicated by the limited space available to house them both. They had to be assembled separately to keep them independent, and then made to operate simultaneously. This is a highly delicate modular integration, which involves other constraints, such as the installation of the dial in two parts, through the sides.

Case:
– Azo polyepoxyde
– Titanium DLC rubber-clad screw-lock crown
– Titanium DLC crown guard
– Screw-locked added lugs
– Metal dome at 06:00 in Titanium DLC
– Cambered sapphire crystal glass with anti-reflective coating on the inside
– Screw-down sapphire back

Azo polyepoxyde Firmness:
– Polyepoxyde : 700 vickers
– Steel 20 AP: 860 vickers
– Titanium : 250 vickers

Dial:
– Unstructured, fluid jours
– black dial, grey indexes & numerals, grey minute hand
– Luminescent hand and hour-markers
– Regulator at 12:00
– Small seconds wheel at 09:30
– Power reserve indicator at 02:30

Bellows
The secret force driving the reservoirs is two bellows made of a highly resistant, flexible electro-deposited alloy, each driven by a piston. And this is where watchmaking comes in to activate the system.

Also known as: HYT 148-PA-21-GF-RU, 148PA21GFRU
